REISS HD Small Pixel Pitch Full Color P1.667 Indoor LED Display for Meeting Room

Large Image : REISS HD Small Pixel Pitch Full Color P1.667 Indoor LED Display for Meeting Room

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ReissDisplay
Model Number:	RFP1667

Contact Now

Detailed Product Description

Warranty:	1 Year	Type:	LED
Application:	Indoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Elevator, Education, Medical Treatment, Indoor Led Display, Meeting Room Display, Indoor LED Screen
Media Available:	Datasheet, Photo	Color:	Full Color
Pixel Density:	350000dots/m2	Pixels:	1.667MM
Operating Environment:	Indoor Led Display	Pixel Configuration:	3in1 (1R1PG1B)
Module Size:	150*168.75mm	IP Grade:	GOB IP65
Brightness:	600-1000cd/m2	Life Span:	100000hr
Viewing Angle:	178 /178°	Cabinet Material:	Die Cast Aluminum
Cabinet Weigh:	4.6Kg

Product Description

Specifications：

Small LED Display (Part of it, contact in detail)

Indoor led module display panel P1.25/P1.5/P1.6/P1.8/P2/P2.5 led video wall screen

With high refresh rate, high brightness, and fast assembling.
With waterproof, light & thin, and good heat dissipation.
Warranty for 5 years . no dead lamp and long time working hours .

Specs			P0.9375	P1.25	P1.56	P1.875
Module specs	pixel pitch	0.9375mm	1.25mm	1.56mm	1.875mm
		pixel configuration	common cathode flip COB LED	common cathode flip COB LED	common cathode flip COB LED	common cathode flip COB LED
		pixel density（pixels/㎡）	1137778	640000	409600	284444
		Module size（mm）	150X168.75	150X168.75	150X168.75	150X168.75
		Resolution（W×H）	160x180	120x135	96x108	80x90
Cabinet specs	Module Qty（W×H）	4x2	4x2	4x2	4x2
		cabinet size（mm）	600(W)X337.5（H）x39(D)	600(W)X337.5（H）x39(D)	600(W)X337.5（H）x39(D)	600(W)X337.5（H）x39(D)
		Resolution（W×H）	640X360	480X270	384X216	320X180
		cabinet Area（m2）	0.2025	0.2025	0.2025	0.2025
		cabinet weight（kg）	6.5	6.5	6.5	6.5
		cabinet material	aluminum die casting	aluminum die casting	aluminum die casting	aluminum die casting
		flatness（mm）	≦0.01	≦0.01	≦0.01	≦0.01
Optical specs	scan number	60	45	48	30
		brightness（nits）	≥650（6500K）adjustable	≥650（6500K）adjustable	≥650（6500K）adjustable	≥650（6500K）adjustable
		color temperature（K）	3200—9300 adjustable	3200—9300 adjustable	3200—9300 adjustable	3200—9300 adjustable
		Viewing angle（horizental/vertical°）	160/160	160/160	160/160	160/160
		center offset	<3%	<3%	<3%	<3%
		brightness/color uniformity	≥97%	≥97%	≥97%	≥97%
		contrast ratio	10000:1	10000:1	10000:1	10000:1
		brightness calibration	Yes	Yes	Yes	Yes
		color calibration	Yes	Yes	Yes	Yes
electric specs	Max.power（W/m²）	450	450	450	450
		Ave.power（W/m²）	150	150	150	150
		Input voltage	AC90~264V，47-63（Hz）	AC90~264V，47-63（Hz）	AC90~264V，47-63（Hz）	AC90~264V，47-63（Hz）
Processing specs	frame frequency（Hz）	50&60	50&60	50&60	50&60
		scan number	60	45	48	30
		gray scale	65536	65536	65536	65536
		refresh rate（Hz）	≥3840	≥3840	≥3840	≥3840
		color depth	16bit	16bit	16bit	16bit
		Video play	2KHD，4KHD	2KHD，4KHD	2KHD，4KHD	2KHD，4KHD
Usage	working temperature/humidity（℃/RH）	-20 – 60 / 10%-85%RH	-20 – 60 / 10%-85%RH	-20 – 60 / 10%-85%RH	-20 – 60 / 10%-85%RH
		storage temperature/humidity（℃/RH）	-20 – 60 / 10%-85%RH	-20 – 60 / 10%-85%RH	-20 – 60 / 10%-85%RH	-20 – 60 / 10%-85%RH
		Safety standards	CCC，TUV-CE，	CCC，TUV-CE，	CCC，TUV-CE，	CCC，TUV-CE，

Click here for more details

Project Cases

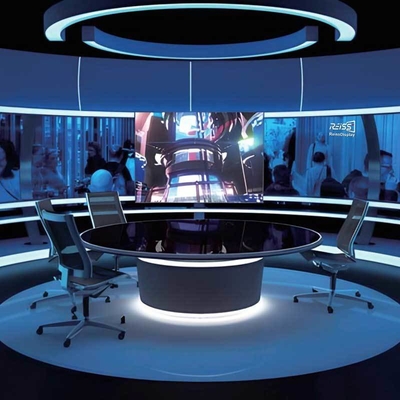

Part of it：Indoor stage studio

Indoor stage performance

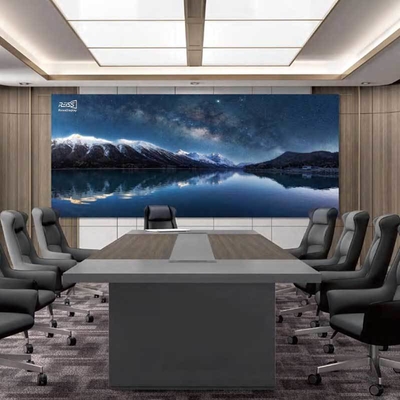

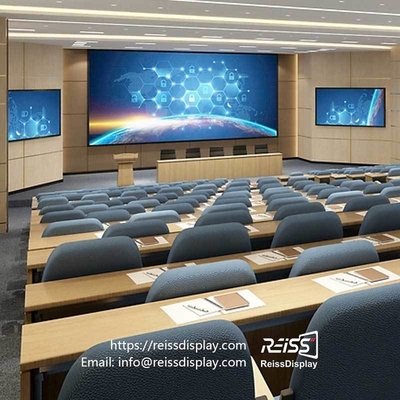

meeting room

Outdoor stage background

Related Product

Small Pixel LED Screen

Rental Type LED Screen

Fixed Type LED Screen

Soft Flexible Curved LED Display

Dance Floor LED Display

Transparent Mesh LED Screen

Company Profile

Shenzhen Reiss Optoelectronics Technology Co., Ltd.

Our products have also passed CE, FCC, RoHS certification. Our market depends on competitive prices and high-quality products, and our products have won the trust of many overseas countries. So far, we have established good cooperation with customers from the United States, Germany, Brazil, Italy, Spain, the United Kingdom, Russia, Australia, New Zealand, Japan and other countries. Our market continues to develop towards a broader prospect.

Certificate

Our Service

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: It Depend on the sample type, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.

Q: I would like to ask you if it's possible to have my logo on the product.
A: Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing

Q: Pixel pitch capability
A: Fine pixel: P1.25 P1.5625 P1.667 P1.875 P1.923 P2
Indoor: P2 P2.5 P3 P4 P5 P6 P2.604 P2.976 P3.91 P4.81
Outdoor: P2.5 P3 P4 P5 P6 P8 P10 P2.976 P3.91 P4.81 P5.95

Q: How to select rental led type? A: In usually,

For indoor stage will be select indoor die casting 1.5625, 1:953, P2.5, P2.604, P2.976, P3, P4, P5, P6, P3.91, P4.81 For outdoor stage will be select P3.91, P4.81, P6.25, P6, P8, P10
