Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen

Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen

Large Image :  Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen

Product Details:
Place of Origin: Guangdong, China
Brand Name: REISS
Model Number: P0.937/P1.25/P1.5625/P1.875/P2.5
Detailed Product Description
Type: LED Application: Indoor
Use: Advertising Publish, Indoor Led Display Screen, INDOOR Media Available: Datasheet, Photo
Color: Full Color Pixel Density: 1100779pix/m²
Usage: Indoor Display Function: Video
Material: Die-casting Module Size: 320mmx180mm
Viewing Angle: H:160° V:160° Brightness: 800cd/sqm
Life Span: 100000hours Refresh Rate: 3840Hz/7680Hz
Warranty: 5 Years Panel Size: 640*360MM

Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 0
Product Description
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 2
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 4
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 6
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 8
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 10
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 12
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 14
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 16
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 18





Specifications:

Small LED Display (Part of it, contact in detail)

Indoor led module display panel P0.9 P1.2 P1.5 P1.25 P1.5 P1.6 P1.8 P1.9 P2 P2.5 led video wall screen

With high refresh rate, high brightness, and fast assembling.
With waterproof, light & thin, and good heat dissipation.
Warranty for 5 years . no dead lamp and long time working hours .

Cabinet Model No.
640*360
Cabinet Size
640mm*360mm*48mm
Cabinet Weight
3.1kg (Suite and power supply not inclueded)
Cabinet Material
Aluminum
Suite Quan.
4 pcs of Modules 320mm*180mm per cabinet
Installation
Grane gider hoisting and Fixed Installation
Color
Dark Grey
Working environment
Indoor
Application scope of pixel pitch
P1.8 P1.6 P1.5 P1.25 P2.5
Standard accessories
2 positioning pins
2 power board installation strips

1/3 Connection lieces
3 Quick locks
Item
P1.25
P1.53
P1.86
Pixel Pitch
1.25mm
1.53mm
1.86mm
Dot Density
640000 dots
427180dots
289000 dots
Pixel Configuration
1R1G1B
1R1G1B
1R1G1B
LED Specification
SMD1010
SMD1212
SMD1515
Module Size
320*180mm
320*180mm
320*180mm
Module Resolution
256*144
208*116
172*96
Cabinet Size
640*360mm
640*360mm
640*360mm
Cabinet Resolution
512*288
416*232
344*192
Cabinet Material
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Life Span
100000 hours
100000 hours
100000 hours
Brightness
500-800cd/㎡
500-800cd/㎡
500-800cd/㎡
Maintenance
Full Front service
Full Front service
Full Front service
Refresh Rate
1920-3840-7680HZ/S
1920-3840-7680HZ/S
1920-3840-7680HZ/S
Scanning Mode
1/64
1/58
1/48
IP Protective Index
IP45
IP45
IP45
Installation
On-wall/Recessed/Pedestal/Suspended/Stacked Install
Signal Output
HDMI/VGA/DVI/DP
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 20

Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 22

Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 24
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 26
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 28
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 30
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 32
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 34
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 36
Project Cases
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 38

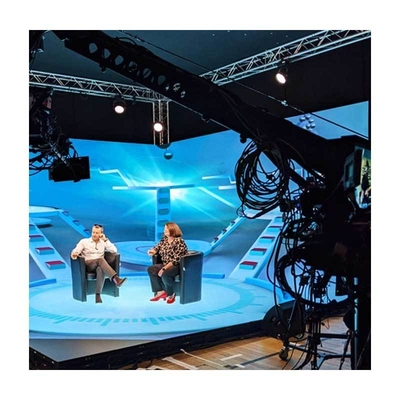

Part of itIndoor stage studio
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 40

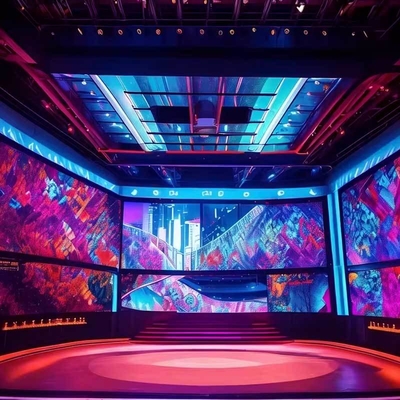

Indoor stage performance
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 42

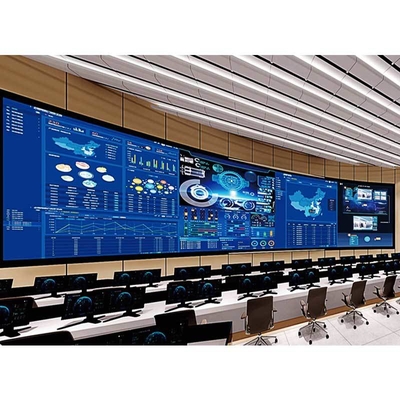

meeting room
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 44
Outdoor stage background
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 46
Related Product
Company Profile
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 60
Shenzhen Reiss Optoelectronics Technology Co., Ltd.
Our products have also passed CE, FCC, RoHS certification. Our market depends on competitive prices and high-quality products, and our products have won the trust of many overseas countries. So far, we have established good cooperation with customers from the United States, Germany, Brazil, Italy, Spain, the United Kingdom, Russia, Australia, New Zealand, Japan and other countries. Our market continues to develop towards a broader prospect.
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 62
Certificate
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 64
Our Service
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 66
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 68
Packing & Delivery
Small Pixel Pitch P0.7/P0.9/P1.2/ P1.5/P1.9/P2 COB Indoor LED Display with Ultra HD Anti-Collision for Video Wall Screen 70
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: It Depend on the sample type, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.


Q: How can we guarantee quality?
A: lways a pre-production sample before mass production; Always final Inspection before shipment;

Q.What can you buy from us?
A: LED Die Casting Cabinet,LED Iron Cabinet,LED Car Top Cabinet,LED Stadium Cabinet,Cabinet Flight Case

Q. Why should you buy from us not from other suppliers?
A: We have advanced equipment and professional r&d team, complete the management pattern, the company's quality policy is: quality first, reputation first, full participation, continuous improvement, always provide customers with satisfactory service.


Q: What is an indoor LED display?
A: An indoor LED display is a large digital screen made up of light-emitting diodes (LEDs) that are designed for indoor use. It is used to display dynamic content such as videos, images, text, and animations.

Q: What are the advantages of indoor LED displays?
A: Indoor LED displays offer several advantages, including:
* High brightness and contrast for excellent visibility in indoor environments.
* Wide viewing angles, ensuring clear visibility from various positions within a space.
* Dynamic and eye-catching content delivery.
* Energy efficiency compared to traditional display technologies.
* Long lifespan and durability.
* Flexibility in terms of size, shape, and installation methods.

Q: What are the common applications of indoor LED displays?
A: Indoor LED displays find applications in various settings, including:
* Retail stores: Advertising, brand promotion, and product showcases.
* Corporate environments: Information displays, digital signage, and video walls.
* Hospitality industry: Digital menu boards, information displays, and wayfinding signage.
* Sports arenas and stadiums: Scoreboards, video screens, and advertising displays.
* Exhibition halls and trade shows: Booth displays and promotional content.
* Control rooms: Monitoring systems and data visualization.
* Entertainment venues: Concerts, theaters, and event backdrops.

Q: What factors should be considered when choosing an indoor LED display?
A: When selecting an indoor LED display, consider the following factors:
* Pixel pitch: Determines the resolution and viewing distance. Smaller pixel pitch results in higher resolution but may require closer viewing distances.
* Brightness: Ensure the display's brightness is suitable for the ambient lighting conditions in the indoor environment.
* Viewing angles: Consider the required viewing angles to ensure clear visibility from different positions within the space.
* Size and aspect ratio: Choose a display size and aspect ratio that suits the available space and content requirements.
* Installation and maintenance: Assess the installation requirements and ease of maintenance for the LED display.
* Budget: Consider the cost of the display, including both the initial purchase and ongoing operational expenses.

Q: Can indoor LED displays be customized in terms of size and shape?
A: Yes, indoor LED displays can be customized to meet specific size and shape requirements. LED panels can be seamlessly connected to create displays of various sizes and aspect ratios, allowing for flexible and creative designs.

Q: How do I control the content displayed on an indoor LED display?
A: Indoor LED displays are typically controlled through a content management system (CMS) or specialized software. This software enables you to upload, schedule, and manage the content to be displayed on the LED screen.

Q: What maintenance is required for indoor LED displays?
A: Regular maintenance for indoor LED displays may include cleaning the screen surface, checking for any faulty pixels, and ensuring proper ventilation and cooling. It is advisable to follow the manufacturer's guidelines for maintenance and consult professionals for any required repairs.





If you need other LED displays (HD indoor screens, stage rental screens, transparent screens, Soft Flexible Curved LED Display...) click here →
