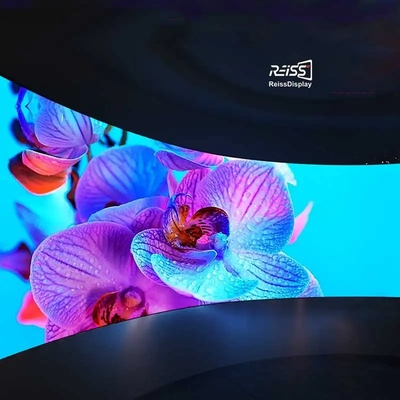

Ultrathin Full-Color LED Video Wall Panel with High Refresh Rate HD Flexible Indoor Digital Display LED Screen OEM SDK Available

Large Image : Ultrathin Full-Color LED Video Wall Panel with High Refresh Rate HD Flexible Indoor Digital Display LED Screen OEM SDK Available

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	REISSDISPLAY
Model Number:	LO0016670

Contact Now

Detailed Product Description

Application:	Indoor, Indoor	Warranty:	5 Years
Color:	Full Color	Supplier Type:	Original Manufacturer, ODM, OEM
Remote Device Management:	Not Available	Use:	Indoor Led Display, Indoor Led Screen, Indoor Led Wall
Function:	SDK	Pixels:	2MM
Specification:	Video Wall	Screen Type:	No
Brightness:	1000nits	Aspect Ratio:	16:9
Pixel Density:	250000dots	Contrast Ratio:	30000:1
Color Depth:	14-18bit	Lifespan (hours):	10000hr
Ip Rating:	IP45	Resolution:	2k/4k/8k
View Angle（h/v）:	160:160°	Usage:	Indoor
Tube Chip Color:	FULL COLOR	Display Function:	Video
Screen Dimension:	320x160mm	Product Name:	Led Video Display Panel
Brightness:	1000cd/sqm	Refresh Rate:	1920/3840Hz/7680Hz
Pixel Pitch:	2

Product Description

If you need other LED displays (HD indoor screens, stage rental screens, transparent screens, Soft Flexible Curved LED Display...) click here →

Specifications：

Small LED Display (Part of it, contact in detail)

Indoor led module display panel P1.25/P1.5/P1.6/P1.8/P2/P2.5/P4/P5 led video wall screen

With high refresh rate, high brightness, and fast assembling.
With waterproof, light & thin, and good heat dissipation.
Warranty for 5 years . no dead lamp and long time working hours .

Model

P1.2

P1.5

P1.6

P1.8

P2.5

Pixel Pitch(mm)

1.25

1.53

1.66

1.86

2.5

Pixel Matrix Per Sq.m

422500

360000

288906

250000

160000

90000

62500

Pixel Configuration

SMD1212

SMD1515

SMD2121

Cabinet Resolution

415x312

384x288

344x258

320x240

256x192

192x144

160x120

Power Con.(W/㎡) (Max / Avg)

600W/200W

580W/180W

550W/160W

450W/160W

Refresh Rate (HZ)

≥3840

3840

≥1920

Brightness (cd/㎡)

500-900

Module Dimension

320x160mm / 1.05x0.53ft

Cabinet Dimension

640x480mm / 2.10x1.57ft

Cabinet Material

Die Casting Aluminum

Cabinet Weight

4.6KG

Service Access

Front

Grey Scale (bit)

14-22bit

Viewing Angle (H/V)

160°/160°

IP Rate

IP45

Operation Temperature

-20℃ ~ +80°℃

Input Voltage (AC)

110V / 220V

Direct connection power cables

Power supply

Fast lock

Receiving card

Click here for more details

Project Cases

Part of it：Indoor stage studio

Indoor stage performance

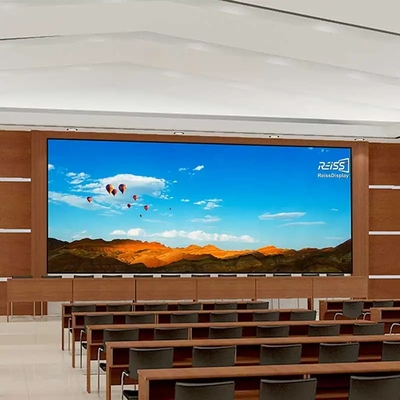

meeting room

Outdoor stage background
